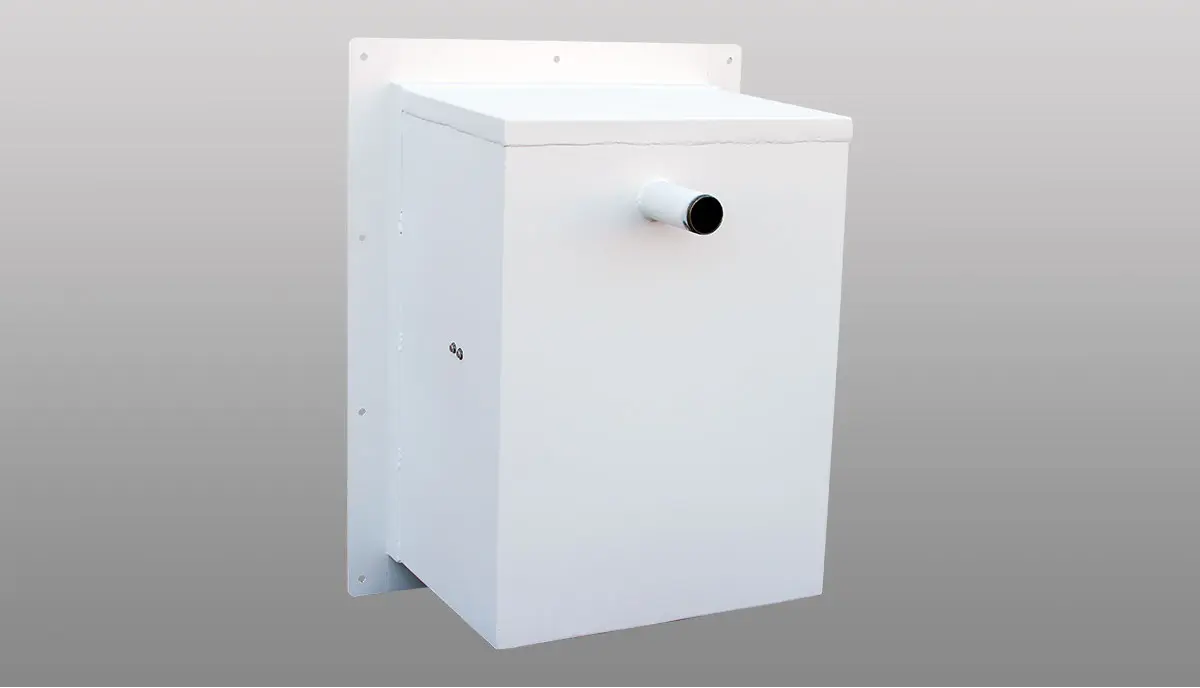

Compact FuelPort

Overview

The Simplex Compact FuelPort is a compact, economical solution for simple filling and spill prevention for aboveground storage tanks. The Compact FuelPort includes all valves and fittings necessary for hose connection from a pumper truck to an above ground storage tank, packaged within a lockable, weatherproof spill containment box.

The Compact FuelPort can be bolted to the tank, hung from the fill pipe, attached via clamps to a 3" post or mounted on a stand. The Compact FuelPort is suitable for use with fuel oil or gasoline, automotive products, or certain chemicals.

We are experts at building products that meet our customer's exact requirements. Contact Simplex if your job specifications require additional options or considerations.

Request a Quote

Features

Codes

EQ 481

General

Weatherproof, lockable box with spill containment
Tank mounting weld brackets (2)
Compact FuelPort mounting tabs to accept weld brackets
Quick disconnect hose coupling with dust plug
Check valve
Shutoff valve
Hand pump for spill containment, with shutoff and check valve
Ground stud

Inlet Connections

Quick detachable coupling with check valve, shutoff ball valve
Couplers and adapters

Outlet Connections

Threaded pipe welded in top panel, NPT threads

Specifications

Delivery Type	Pumper truck to tank
Shutoff	Manual
Product	Class I Liquid, < 100°F Flash Point Class II Liquid, > 100°F Flash Point
Inlet Fitting Size	1.5", 2", 3" or 4"
Spill Containment	FuelPort - 7 gallons Full Size FuelPort - 20 gallons
Paint	UL Listed powder-coat process
Hand Pump Capacity	1 GPM
Dimensions	FP-2 & FP3: Compact FuelPort - 24.5"W x 26.5"H x 21.5"D FP-2-075 & FP-3-075: Compact FuelPort Flush Wall-Mount - 30"W x 38.5"H x 20.5"D FFP-2 & FFP-3: Full Size FuelPort - 35.125"W x 50.125"H x 27.5"D
Weight	FP-2 & FP3: Compact FuelPort - 125 lbs. FP-2-075 & FP-3-075: Compact FuelPort Flush Wall-Mount - 135 lbs. FFP-2 & FFP-3: Full Size FuelPort - 315 lbs.

Note: Dimensions and weights are subject to change with options selected.

Downloads

Options

Note: We are experts at building products that meet our customer's exact requirements. Contact Simplex if your job specifications require additional options or considerations.
