Medium Voltage Transformer

Overview

Suitable for stepping-down medium voltage power sources for low voltage applications (such as load testing). Nearly any desired medium voltage power source can be tested by combining this transformer with an Simplex load bank. The transformer can be delivered to the job site together with the desired load bank, in a pre-connected, seamless package mounted on a trailer.

We are experts at building products that meet our customer's exact requirements. Contact Simplex if your job specifications require additional options or considerations.

Request a Quote

Features

kVA

3500, 65°C Rise, 5.75% impedance, 85°C

Insulating Liquid

Mineral Oil, “Non-PCB.”, 780 GAL

Three Phase, Class-Onan, 60Hertz

BIL - H.V/L.V 95kV / 30kV

Conductor MAT

H.V./L.V - AL/AL

Primary Voltages

2400v, 4160v, 6928v, 7200v, 7620v, 7970v, 8320v, 12,000v, 12,470v, 13,200v, 13,800v, 14,400v

Secondary Voltages

600Y/346v, 480Y/277v

Specifications

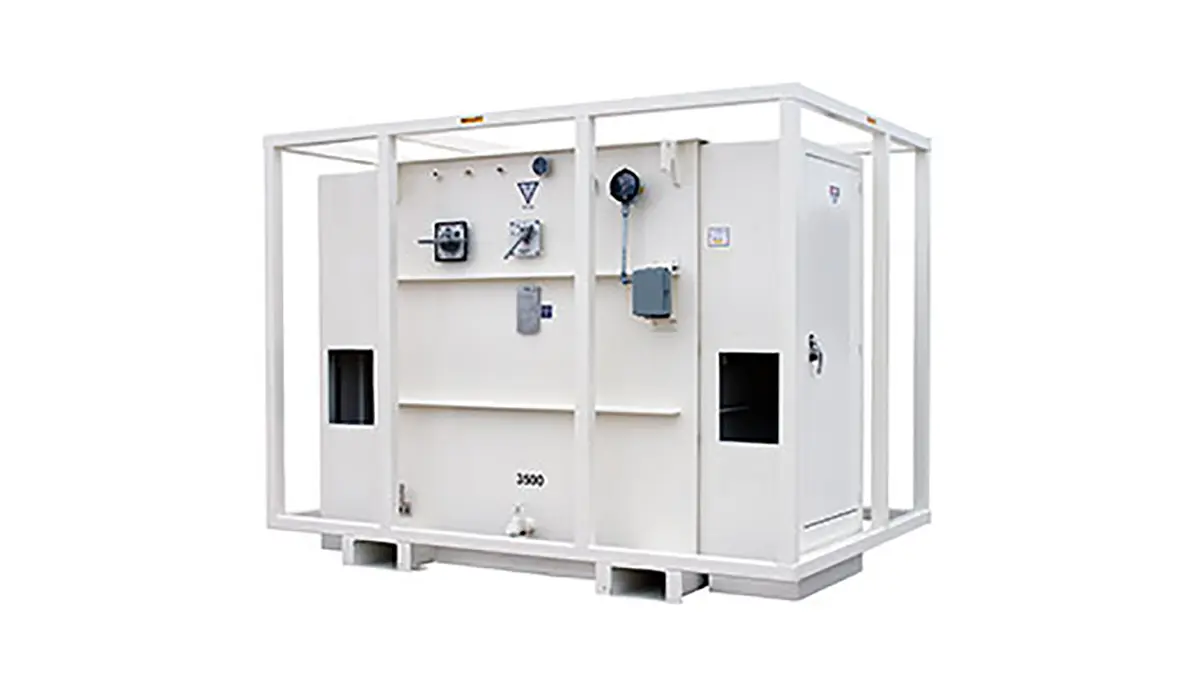

3500 kVA substation transformer
4 each high voltage bushings in full length enclosure with 4-hole spades
7 each low voltage bushings in full length enclosure with 6-hole spades
Aluminum windings
Mineral oil filled
Pressure relief valve
Filler plug with Schrader valve
Oil level gauge, temperature gauge with dual contacts and pressure vacuum gauge
1-inch drain valve with sampler
Externally operated no load tap changer
Externally operated no load dual voltage switch
Externally operated no load delta-wye switch
Forklift pockets
Gas sample valve
NEMA 4 control box
2-inch drain valve with oil sampler
3-inch square tubing protective cage
Diagrammatic corrosion resistant nameplate
