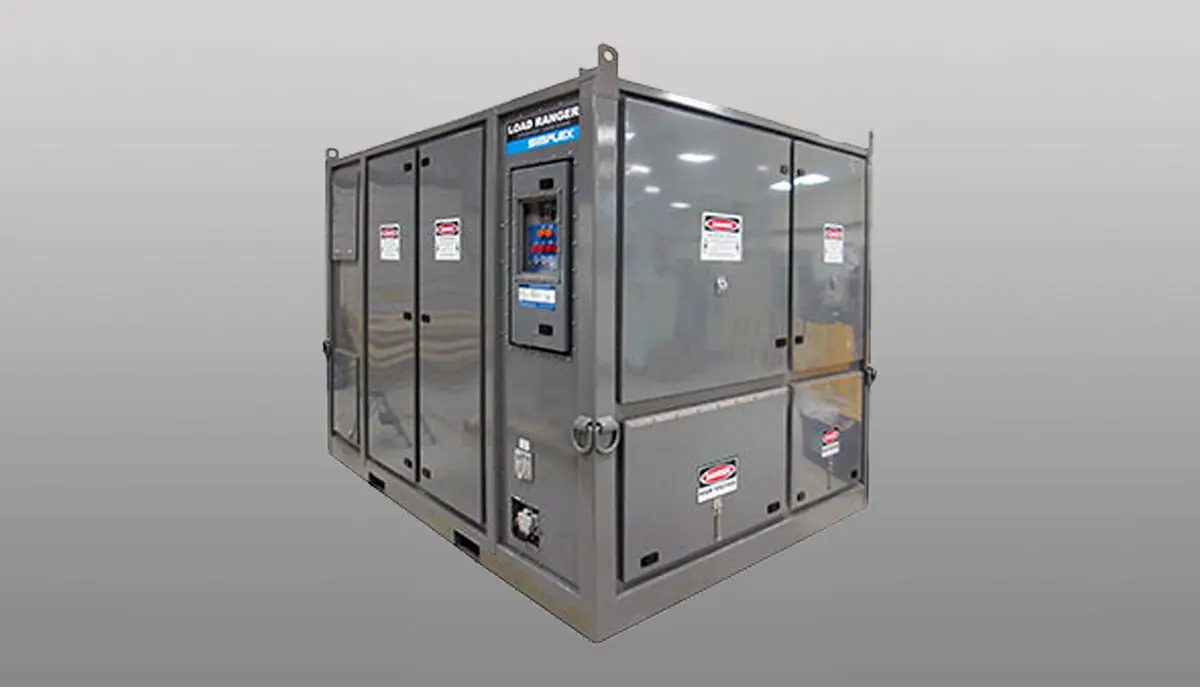

Inductive Load Ranger R

General

• With a purpose-built design consisting of rugged, all-welded, monolithic steel frame, heavy gauge steel sides, guarded hinged doors, power-operated ventilation louvers, the Inductive Load Ranger R is far superior to designs which use refurbished and modified ISO shipping containers. Multi-sided access allows ready service of all components and facilitates the ultra-compact design.
• Compact and easily transportable, the Inductive Load Ranger R is ideal for rental use. With a footprint of only 8 x 10 feet and a height of less than 8 feet, the Inductive Load Ranger R is easily transportable by drop-deck flatbed trailer. Lifting eyes and forklift channels simplify site movement.

Control System

• The Inductive Load Ranger R utilizes digital load control for direct access of load values, block transitions, and user programmable automation. The Inductive Load Ranger R networks to the resistive Load Ranger R for single point control.
• The Simplex Inductive Load Ranger R represents the ultimate technology in large generator load testing performance. They can be digitally networked to the resistive Load Rangers for single point control.

System Protection

• Sensors, alarms (alarm message on operator interface terminal), lockouts as appropriate, for the following: fan failure; high exhaust temperature, each of two fans; high intake temperature, high interior temperature and over open/closed.

Power Connection

• Bolt on bus bar and cam-lock style connectors behind hinge-up access door.

Cooling

• Forced air, ducted blowers.

Load Elements

• Inductive elements: Non-saturable, air-gap type, iron-core power inductors. 5% tolerance, 1% waveform distortion, 0.05 power factor, 150°C rise, 220°C insulation.

Enclosure

• Type 3R control section; Type 3R power section. Epoxy primed, polyurethane finish coating, dark gray and transport, storage D-rings. Lifting eyes, forklift channels, hinged, lockable, access doors with flush latches.
