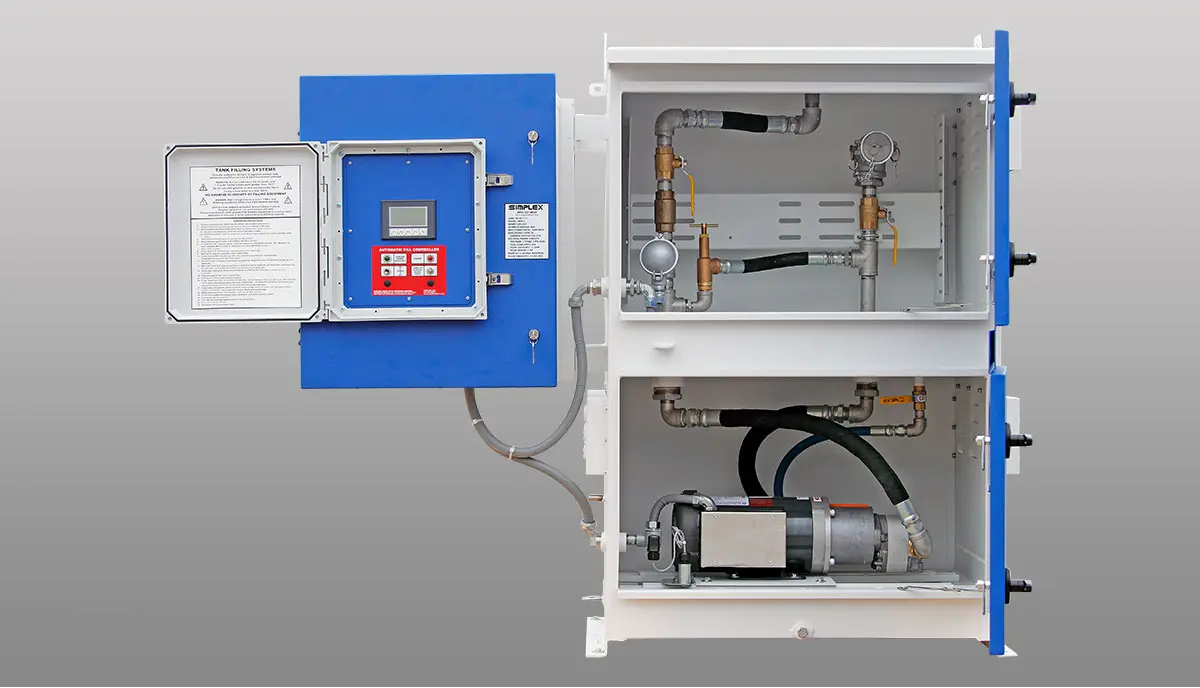

SmartPump

Overview

The SmartPump is a factory packaged system for transfer of fuel oil from gravity trucks to storage tanks and control of filling operations to prevent overfill and allow for full draining of the truck delivery hose. The SmartPump provides a ready means of ground level connection of the full hose and captures spills that may occur at the fill point during filling operations. The SmartPump includes a high-capacity fuel transfer pump and intelligent pump controls.

The Simplex SmartPump is available for use with fuel oil (Class-II liquids) or gasoline (Class-I liquids).

We are experts at building products that meet our customer's exact requirements. Contact Simplex if your job specifications require additional options or considerations.

Request a Quote

Features

Codes

EQ 706
Non-Explosion Proof Controller: UL 508A

Smart Pump

Freestanding, pad mountable, open construction pump set with weatherproof and lockable fill box with 7-gallon spill containment sump and weatherproof and lockable control box
2", 3" or 4" fittings
Quick disconnect hose coupling with dust plug
Inlet shutoff valve
Check valve
Outlet shutoff valve
Line purging valve
Spill sump drain valve
High-capacity transfer pump
Controller described below
Ground stud
Couplers and adapters

Controller

Level transmitter for installation in 2" tank fitting minimum
Tank Full and High-Level visual alarms
Tank Leak alarm
Audible alarm horn activated by alarms above
Power Available indicator
Control Power On-Off switch
Pump Start/Stop pushbuttons
Top-off/hose drain mode pushbutton
Pump starter
Type 3R control enclosure (fuel oil version)
Explosion proof control enclosure (gasoline version)

Multiple Tank SmartPump:

The operator selects the tank to be filled with automatic lockout of off-line tank(s)
Sophisticated interlocks prevent inadvertent filling of a non-selected tank
Tank Full alert and High Fuel automatic shut-off
Tank level indicators
Electrically operated shut-off valves for each tank, shipped loose for installation at the inlet of each tank

Specifications

Delivery Type	Gravity truck to one or more tanks
Shutoff	Automatic
Product	Class I Liquid, < 100°F Flash Point Class II Liquid, > 100°F Flash Point
Inlet Fitting Size	2", 3" or 4" (3" internals and 3" outlet)
Motor and Pump	2 HP / 150 GPM (2" Inlet Fitting) 5 HP / 300 GPM (3" and 4" Inlet Fitting)
Spill Containment	SmartPump - 7 gallons Mini SmartPump - 20 gallons
Paint	UL Listed powder-coat process
Control Power	115V or 240V, 1-Ph, 60Hz 208V, 240V, 416V or 480V, 3-Ph, 60Hz
Dimensions	SmartPump - 66"W x 44"H x 26"D SmartPump with Full Lockable Enclosure - 72"W x 69.75"H x 24"D SmartPump (Gas) with Vapor Recovery - 74"W x 44"H x 26"D Mini SmartPump - 51.25"W x 48.675"H x 30.837"D Mini SmartPump (Multi-Tank) - 61"W x 50"H x 24"D
Weight	SmartPump (Oil) - 617 lbs. SmartPump (Gas) - 632 lbs. SmartPump with Full Lockable Enclosure - 875 lbs. SmartPump (Gas) with Vapor Recovery - 708 lbs. Mini SmartPump - 508 lbs. Mini SmartPump (Multi-Tank) - 600 lbs.

Note: Dimensions and weights are subject to change with options selected.

Downloads

Options

Option	Description
020	2" fire rated shutoff valve assembly for installation on AST fuel inlet, consisting of fire rated ball valve and self-closing fusible link valve
022	3" fire rated shutoff valve assembly for installation on AST fuel inlet, consisting of fire rated ball valve and self-closing fusible link valve
030	2" dry disconnect adaptor installed on inlet in lieu of standard part B coupler
035	3" dry disconnect adaptor installed on inlet in lieu of standard part B coupler
051	Tank leak sensor float switch type, for mounting in a vertical position in collection sumps, monitoring pipes and steel double wall tank sumps; included in controller: tank leak alarm, tank fill shutoff, alarm contacts; for installation in 2" fitting
051EQ	Florida EQ-705 compliant tank leak sensor float switch type, for mounting in a vertical position in collection sumps, monitoring pipes and steel double wall tank sumps; included in controller: tank leak alarm, tank fill shutoff, alarm contacts; for installation in 2" fitting
052	Tank leak sensor optical type, for mounting in a vertical position in collection sumps, monitoring pipes and steel double wall tank sumps, included in controller: tank leak alarm, tank fill shutoff, alarm contacts; or installation in 2" fitting
055	3" vapor recovery fitting
TC-25	Digital level indicator scaled in percent level, 4-20mA output (not available for gasoline versions, use #059), level transmitter supplied for field installation in 2" tank fitting
059	Hydrostatic level gauge, hand pump type with 5" dial type indicator calibrated in gallons, transmitter installed in 2" tank fitting, supplied in lieu of standard digital level indicator with oil AFP
088d	2" fire rated shutoff valve in lieu of bronze valve (not available for Mini SmartPump)
088e	3" fire rated shutoff valve in lieu of bronze valve (not available for Mini SmartPump)
093c	2" fusible link fire valve on outlet (not available for Mini SmartPump)
093d	3" fusible link fire valve on outlet (not available for Mini SmartPump)
098	2" motorized ball valve
099	3" motorized ball valve
182a	Full enclosure for SmartPump. Lockable, with containment basin and hand pump (not available for Mini SmartPump)
182b	Full enclosure (stainless steel cabinet) for SmartPump. Lockable, with containment basin and hand pump (not available for Mini SmartPump)
509	Control power transformer for 240/480v service (standard for SmartPump)

Note: We are experts at building products that meet our customer's exact requirements. Contact Simplex if your job specifications require additional options or considerations.
