TC8 Tank Alarm Panel

Overview

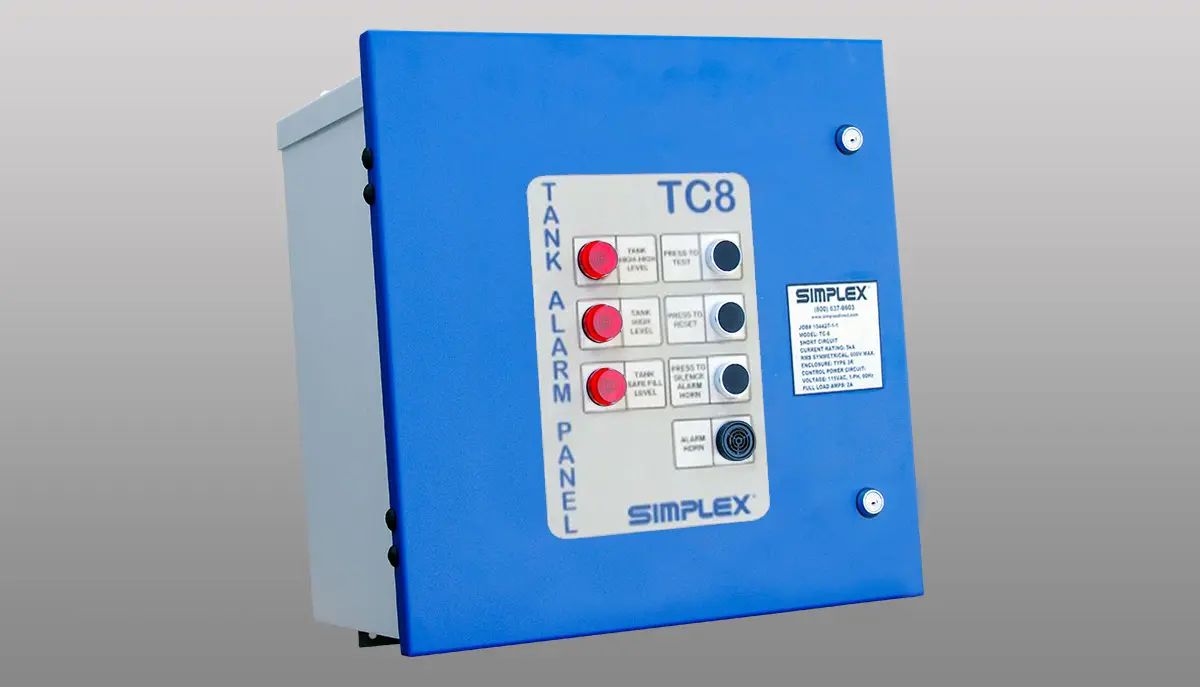

The Simplex TC8 Tank Alarm Panel is used to monitor High Fuel Level, Low Fuel Level, and Tank Leaks through audio and visual alarms. Additional level indicators are optional.

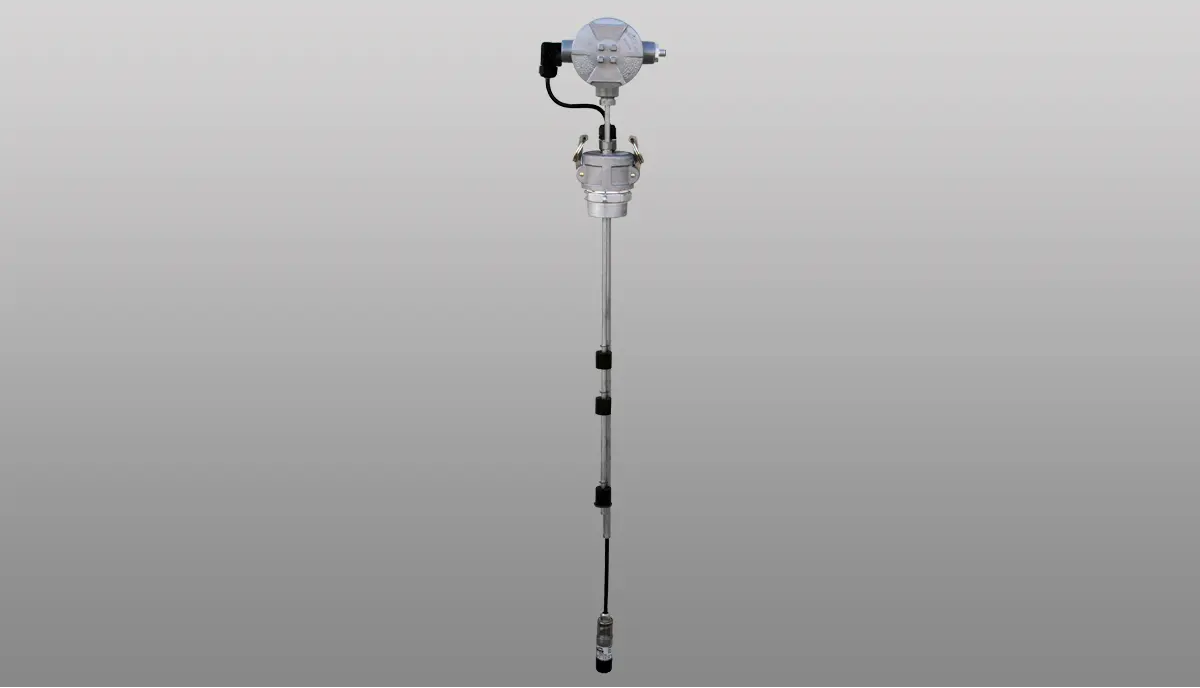

Relay dry contacts are provided for remote alarms. The TC8 receives signals from float switches mounted on the tank. The float switches may be included as an option or provided by others.

The TC8 Tank Alarm Panel is available in 115VAC and 24VDC voltages. The TC8 is for use with fuel oil or other Class II liquids or non-flammable liquids or chemicals. The TC8 carries a UL 508A Label.

We are experts at building products that meet our customer's exact requirements. Contact Simplex if your job specifications require additional options or considerations.

Request a Quote

Features

Indicators and Controls

High Level Alarm Light
Low Level Alarm Light
Tank Leak Alarm Light
Press To Test pushbutton
Press To Reset pushbutton
Alarm Horn with Press to Silence pushbutton
Dry contacts for High, Low, Leak Alarms
Additional level sensors are optional

Enclosure

Type 3R, lockable enclosure with hinged door
UL 508A Listed

Specifications

Power supply	115VAC, 1ø, 60 Hz or 24VDC
Application	Fuel oil, Class II liquids, non-flammable liquids, chemicals
Alarm contacts	10A @125/250VAC, 30VDC

Downloads

Options

Note: We are experts at building products that meet our customer's exact requirements. Contact Simplex if your job specifications require additional options or considerations.
