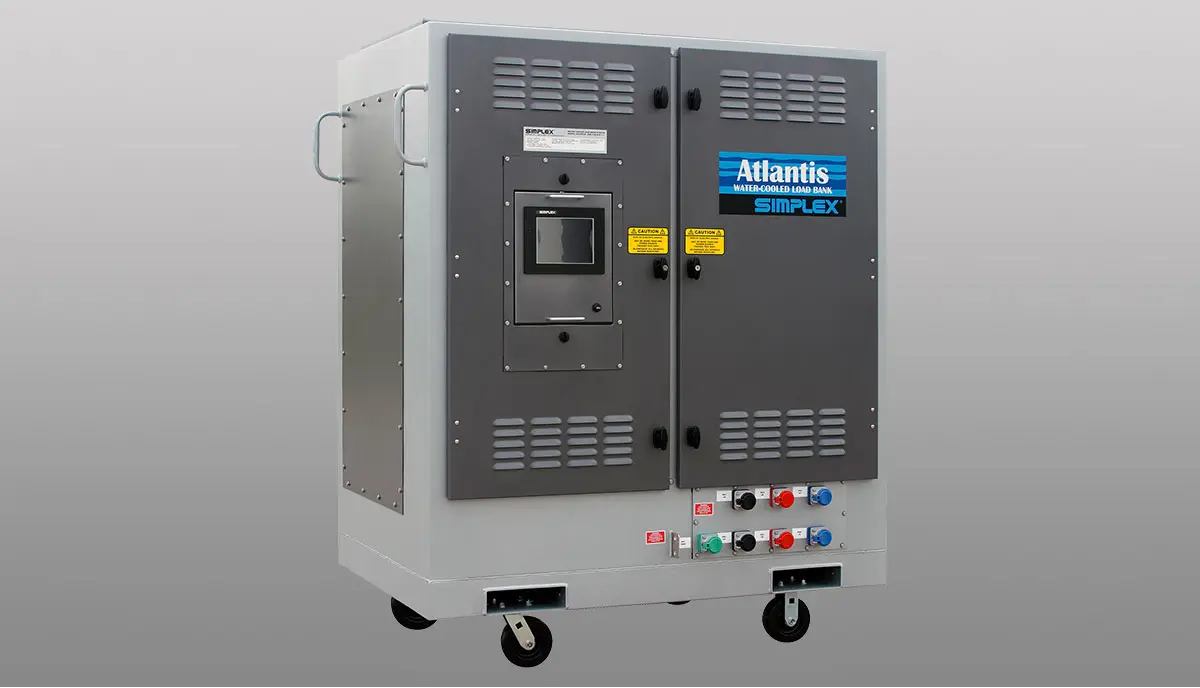

Atlantis 500R

Overview

The Atlantis-Series is an attractive alternative to air-cooled Load Banks. It is perfectly quiet and cool running; extremely compact and may be installed in otherwise unutilized space. And it is virtually maintenance free. The Atlantis-500 is ideal for data center chiller system commissioning. With its large 4-inch water connections and minimal pressure drop, the Atlantis will accept the high water flows required for limited temperature rise, typically 12.5°F. Multiple Atlantis Load Banks can be networked to form large systems controlled from a single operator interface. In addition, the Atlantis shares the same control architecture with the Simplex Nautilus-250 permitting any number of Atlantis and Nautilus Load Banks to be networked together.

We are experts at building products that meet our customer's exact requirements. Contact Simplex if your job specifications require additional options or considerations.

Request a Quote

Features

General

Multiple Atlantis 500R Load Banks can be networked to form large systems controlled from a single operator interface. In addition, the Atlantis shares the same control architecture with the Simplex Nautilus-250, 250kw water-cooled load bank, permitting any number of Atlantis and Nautilus Load Banks to be networked together.

Control System

Digital control portable touchscreen with V-A-Hz-KW display.
Multiple Atlantis 500R Load Banks can be networked to form large systems controlled from a single operator interface. In addition, the Atlantis shares the same control architecture with the Simplex Nautilus R, 250kw water-cooled load bank, permitting any number of Atlantis and Nautilus Load Banks to be networked together.

Load Cell

Each load cell includes sensors for normal operation, cooling failure, overpressure and loss of flow / low water level.

Load Elements

Each load cell includes sensors for normal operation, cooling failure, overpressure and loss of flow / low water level.
Load elements are water immersion power resistors. Load control is via magnetic contactors with branch circuit power fuses.

Control Power

Control power for the Load Bank is provided by 120V, transformer isolated, internal power supplies. Control power is derived internally from the connected power source or from an external source./td>

Power Distribution

Power distribution within the Load Bank is via a 3-phase main copper load bus. Field connections are via cam-lok type connectors.

Cooling Media

The Atlantis 500 R is suitable for use with a variety of cooling media, including city water (nominal 50 PSI), closed loop chilled water systems, heat exchanger systems, pumped water from natural sources (lake, river, etc.) or brine or sea water (requires optional nickel alloy construction and elements)

Specifications

Load Type	Resistive
Capacity	500KW
Power Factor	1.0
Voltages	Low voltage to 600V, specify
Frequency	50, 60, 400 Hz
Load Steps	50KW resolution standard. 1-5-10-25KW resolution available.
Load Connection	Cam-Type
Load Control	Digital Controller
Coolant	Chiller, city water, closed-loop heat exchanger, natural water (river, lake, etc.)
Cooling	Normal Duty: 10 GPM per 100KW, 62.5°F rise
Minimum Cooling Requirements	6.25 GPM per 100KW, 100°F rise, outlet not to exceed 170°F Typical Duty, Chilled Water Systems, 50 GPM per 100KW, 12.5°F rise
Coolant Requirements	KW = GPM x Temp. Rise (F) x .16, GPM = KW / (Temp. Rise x .16) Temp. Rise (F) = KW / (GPM x .16) Particles must be less than 150 microns or a filter is required
Pressure Drop	5 PSI or less
Control Power	Internal or external source, transformer isolated, 120V
Pressure	180 PSI test pressure, 50 PSI nominal / operating pressure
Duty Cycle	Continuous
Portability	Casters
Dimensions	60″W x 76.75″H x 42″D
Networkable	Yes
Outdoor Suitable	No
