MicroStar R-N

Overview

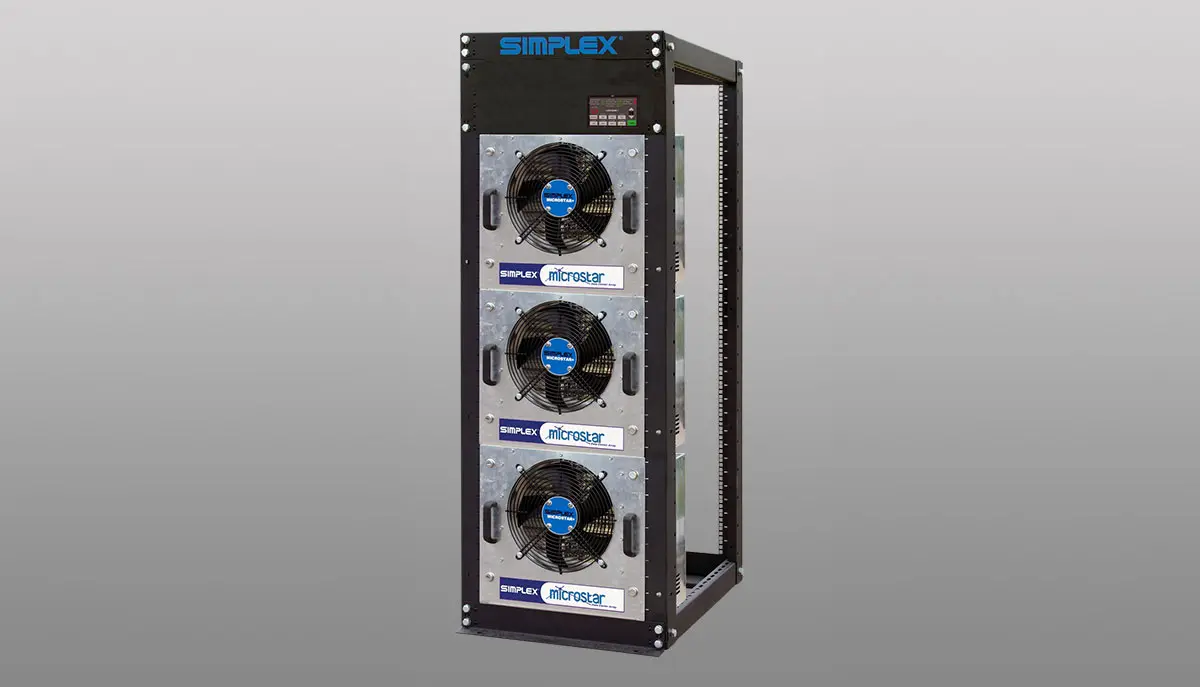

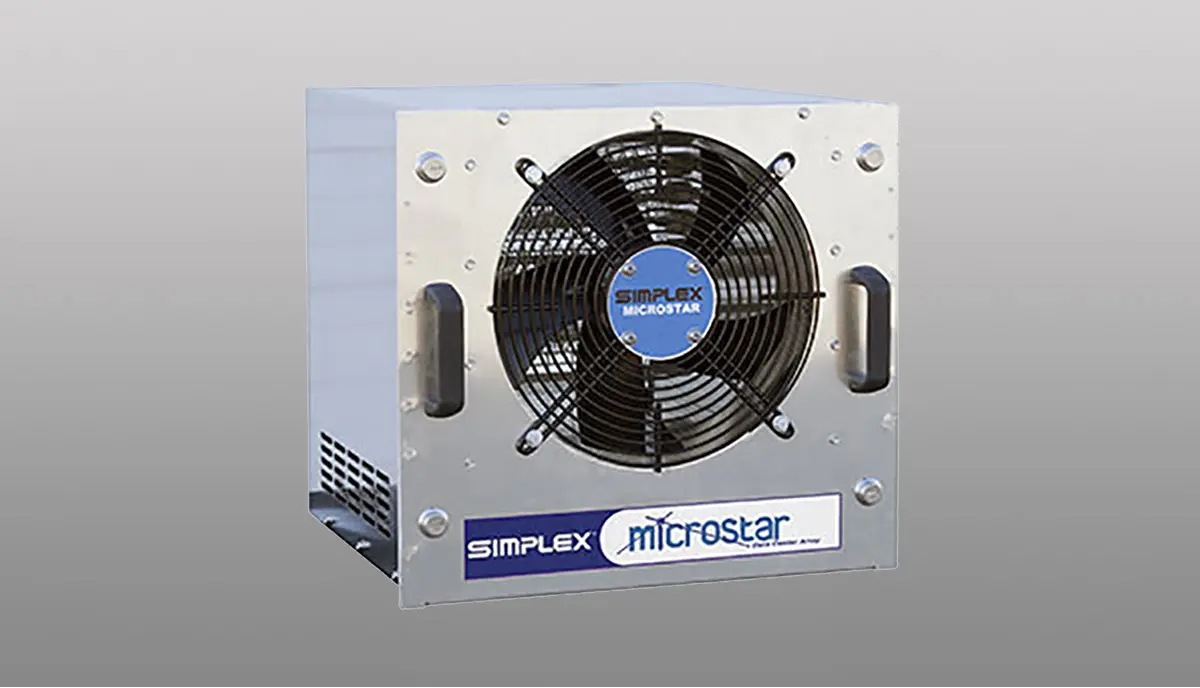

Simplex MicroStar R Precision Air Heaters (Load Banks) enable comprehensive testing of data center hot aisle/cold aisle cooling systems.The MicroStar R Precision Heater Rental is a 19-inch rack mountable device (10U high) that can be easily installed into a wide range of standard server racks. Heat can be precisely generated via adjustable load steps and adjustable airflow (velocity and CFM). A rack of up to three load banks is locally controlled and monitored from a control hub mounted in the same rack. Up to 66 of these hubs can be networked for central control from a PC.

We are experts at building products that meet our customer's exact requirements. Contact Simplex if your job specifications require additional options or considerations.

Request a Quote

Features

  • Up to 66 hubs of 3 heaters per hub can be networked for central control from a PC.
  • Precision thermal control of heat load, temp rise and airflow via step control and fan speed control.
  • Can be installed in standard 19-inch server rack.
  • Exclusive quarter-turn, key lockable mounting tabs.
  • Light weight (45 pounds).
  • Automatic overload protection: fan reverts to higher speed above a preset power level.
  • Over temperature sensor with master disconnect and alarm.
  • Internal fuse protection of heat circuits.
  • Master control of all steps.
  • Remote master control input (24v).
  • All 24v control circuits via internal power supply.

Specifications

Load TypeResistive
Capacity17.5KW at 240V, 16.1KW at 230V, 13.15KW at 208V, 1-ph
Power Factor1.0
Frequency60 Hz
Load ConnectionEach section connected via C19 power inlet/plug
Cooling AirflowSolid state speed control, 400-1520 CFM
PortabilityRack Mountable
Weight45 pounds
Control Power24VDC control via internal power supply
Testing ControlsA rack of up to three load banks is locally controlled and monitored from a control Hub mounted in the same rack. Up to 66 of these hubs can be networked for central control from a PC.
NetworkableYes
Outdoor SuitableNo
