Infinity R

Overview

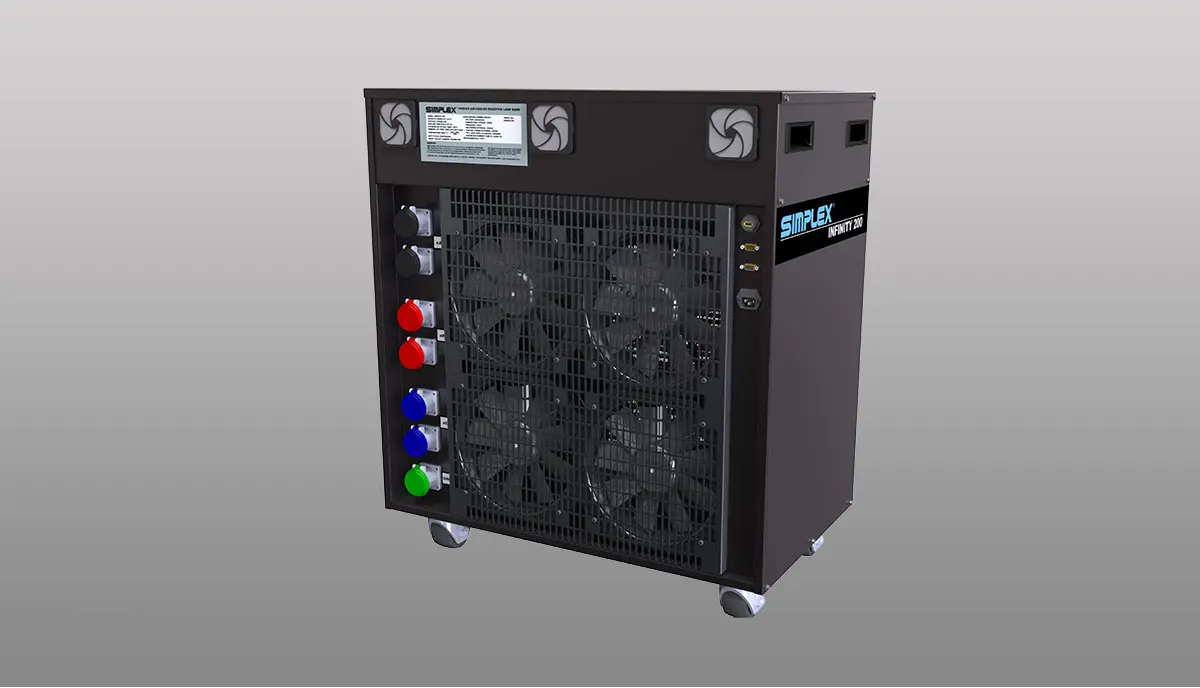

The Simplex Infinity R 200kw is simply the most advanced factory-standard load bank available anywhere. Digitally controlled infinite loads—simply enter any value from zero to max, and the load bank goes there. Ramp-up, ramp-down, infinitely. Roll-in, roll-out, 360-degree casters, forkliftable, connect up to 2 x 4/0 per phase. Daisy chain up to 40 units (that’s 8000kw- maybe not infinite capacity, but who’s counting at that point). Single-point control of the chain of load banks. The Infinity is easily transported to the job site. The Load Bank includes casters, lifting and moving handles. Power connections are plug-in to Cam-Type connectors. Control and cooling fan power is obtained from a common 115v, 15A outlet via the included connection cord.

We are experts at building products that meet our customer's exact requirements. Contact Simplex if your job specifications require additional options or considerations.

Features

UL Listed
  • Unique compact 200kw load bank
  • UL Listed, United States and Canada
  • Lightweight and compact
  • Portable, self-contained
  • “Powr-Web” elements
  • Branch circuit fuse protection of load elements
  • Magnetic contactor control of load
  • Digital load control
  • Use at all common 50 or 60 Hertz voltages, to 480V AC
  • Digital Power Transducer, standard: Volts, Amps, Frequency, Kw
  • 150°C XLP insulated power wiring
  • Cam-Type power connectors
  • Operate fan and control circuits from a common 120V wall outlet, 15’ cord provided
  • Forced air cooled, integral cooling fans
  • Fan motors protected by fuses
  • Control circuits fused
  • Comprehensive malfunction detection system:
    • Overtemperature and fan failure protection
    • Overvoltage protection
  • Continuous duty
  • Type-1 enclosure
  • Casters and handles provided

Specifications

Load TypeResistive
Capacity200kw at 240 and 480v, 3-phase; 150kw at 208 and 416v, 3-phase, 133kw at 240v, single-phase
Power Factor1.0
VoltagesDual Voltage, nominal 240/480V AC, 3-phase
208-240 / 416-480V AC, 3-phase, 60Hz
190-220 / 380-460V AC, 3-phase, 50Hz
110-240V AC, 1-phase, 50-60Hz
Full Load Amps481 at 240V, 241 at 480V
Frequency50, 60, 400 Hz
Load StepsInfinitely variable load control
Load ConnectionCam-Type
Load ControlDigital Controller
Cooling Airflow2400 CFM
Fan/Control PowerExternal 115V AC, 1Ø, 60Hz, 15A service, 15′ cord with plug provided
Duty CycleContinuous
PortabilityCasters
Weight200 lbs
Dimensions19.4″W x 36.1″H x 32.4″D
Temperature RatingMaximum Air Intake Temperature: 125° F
Nominal Temperature Rise110° F
NetworkableYes
Outdoor SuitableNo
