Swift-e

Overview

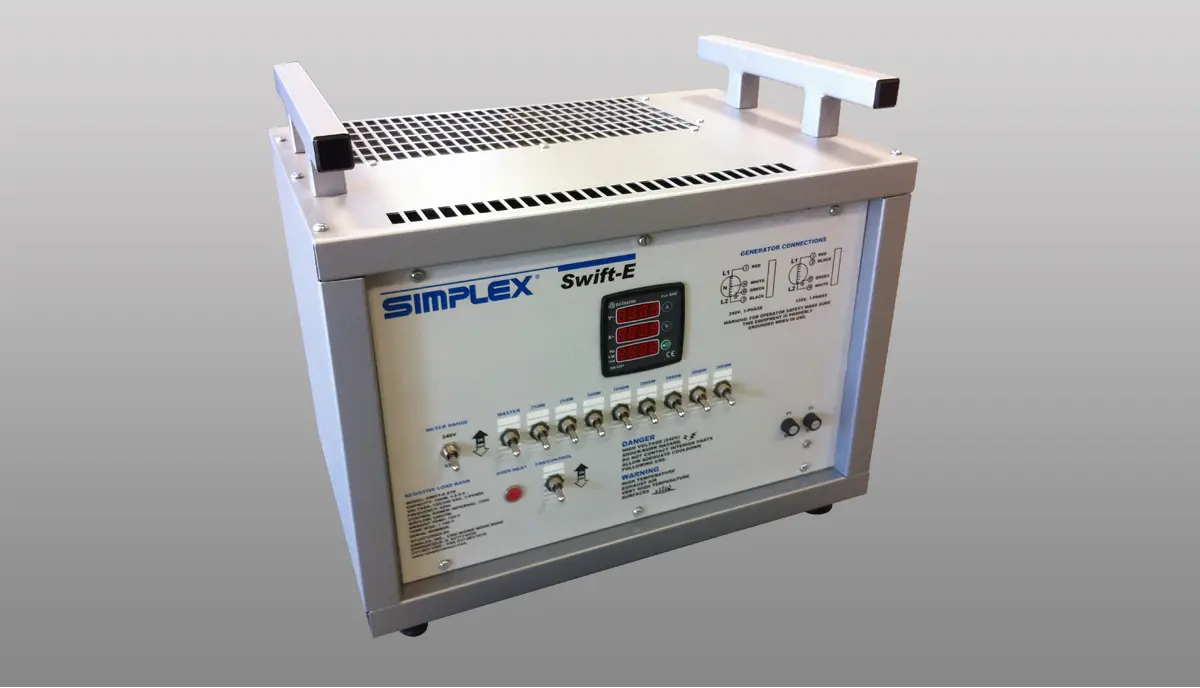

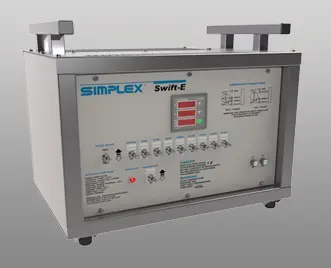

Quick and easy testing of small generators and AC power sources is possible with the Simplex Swift-e.

Portable, fully self-contained, lightweight and hand transportable, the Swift-e can be used to test and maintain small engine generators (residential standby, contractor generators, marine generators, RV generators and small wind turbines) as well as 120/240v panelboards and distribution, inverters, and small UPS.

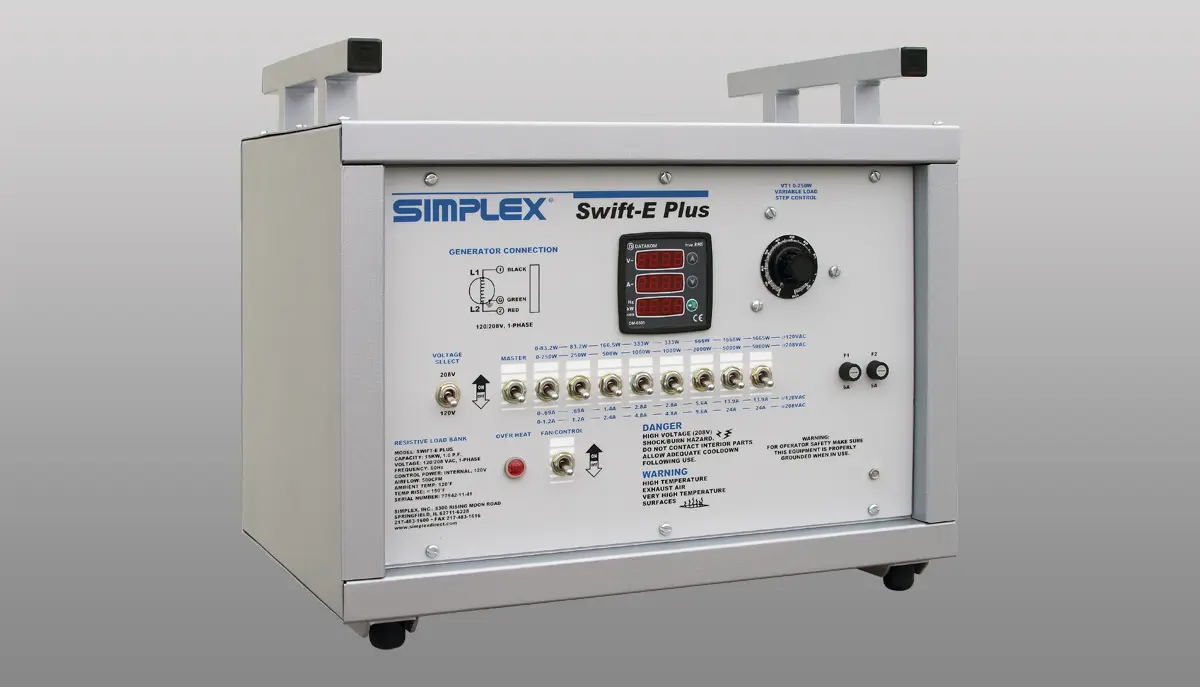

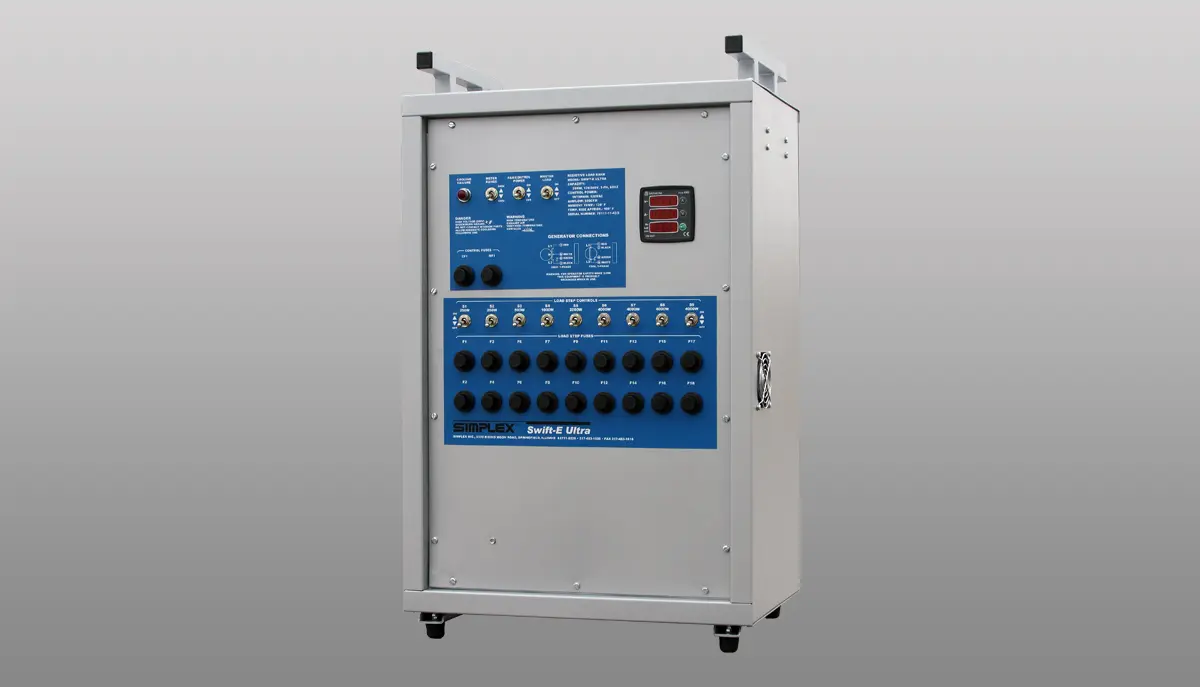

Swift-e’s are available in three versions: Swift-e (10kw), Swift-e+ (15kw), and Swift-e Ultra (20kw).

We are experts at building products that meet our customer's exact requirements. Contact Simplex if your job specifications require additional options or considerations.

Request a Quote

Features

Load Elements: Sealed, tubular-type element consisting of nichrome resistance wire sealed within an incolloy shealth (nickel alloy). electrically dead exterior of element reduces hazard of electric shock and short circuit of elements. Elements are rustproof, vibration and shock proof.

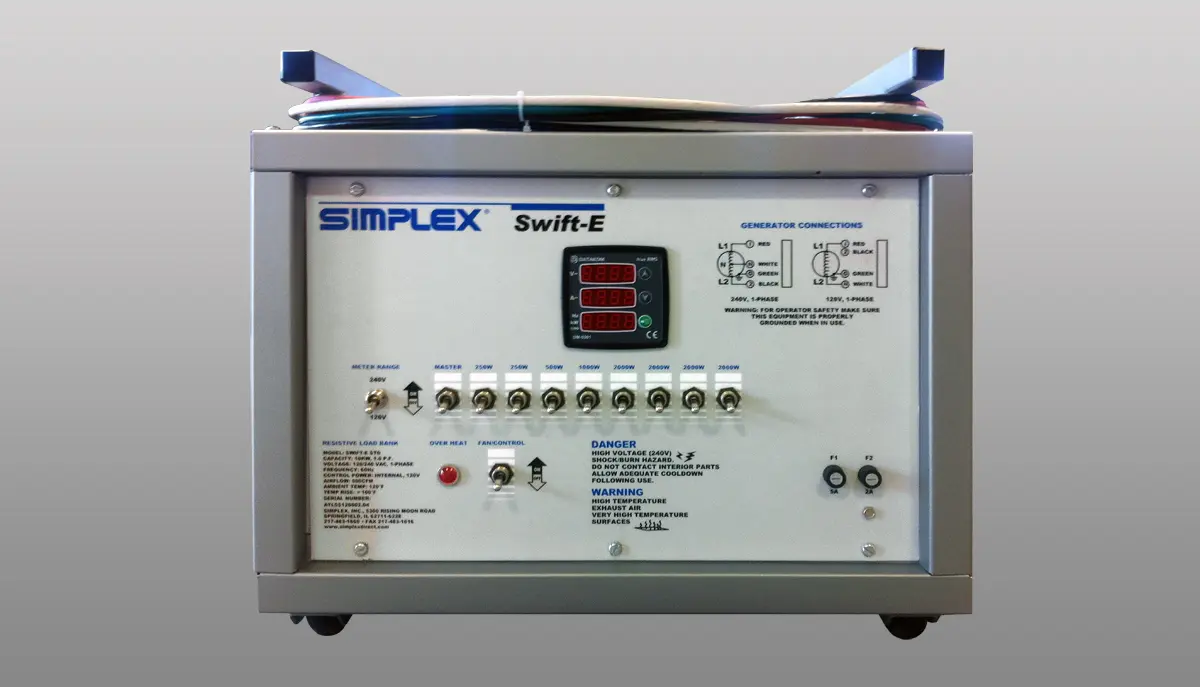

Load Control: Panel mounted toggle switches for each load step and master load control. Main contactor for master load control/block loading.
Test Instrument: Digital Power Meter (Voltage, Amps, KW).
Load Element Circuit Protection: Main circuit breaker with overload/short circuit trips.
Overtemperature Protection: Sensor to trip main contactor and activate alarm indicator.
Overvoltage Protection: Sensor to protect against incorrect connection of load bank (connection of 240V to 120V circuits). Trips main contactor and activates alarm indicator.

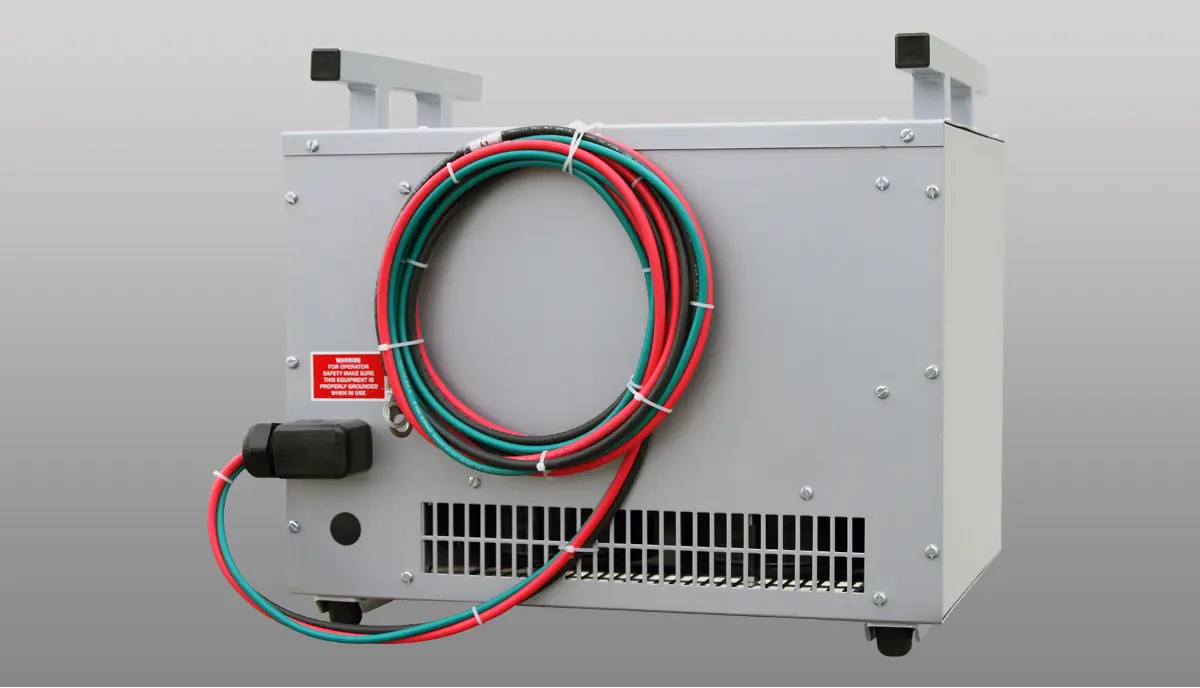

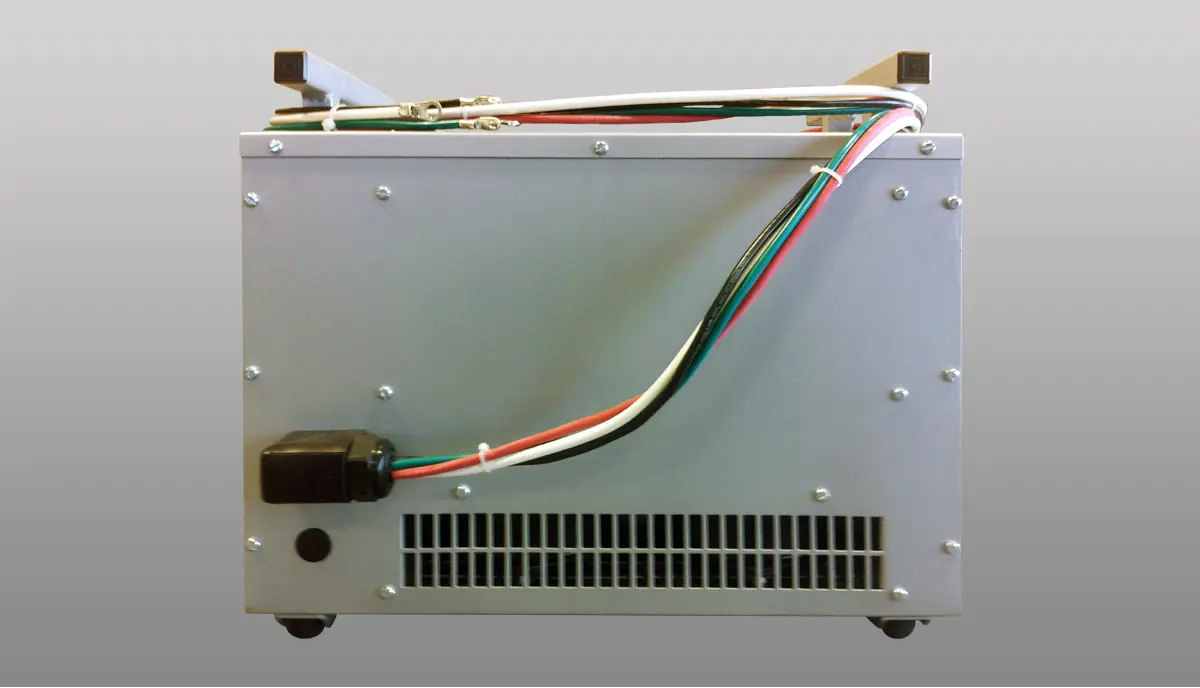

Connection: Cable set, 10', with ring lug terminations.
Enclosure: NEMA type 1, aluminum construction, powder coated nickel metallic. Includes rubber feet, combination carry handles and cable wrap.

Specifications

Capacity	Swift-e: 10,000 watts Swift-e+: 15,000 watts Swift-e Ultra: 20,000 watts
Load Type	Resistive
Voltages	Reconnectable 120vAC or 240vAC, single-phase
Frequency	60 Hz
Load Steps	250W step resolution
Duty Cycle	Continuous
Cooling	On board fans, 500 CFM
Control Power	Internal, from power source under test

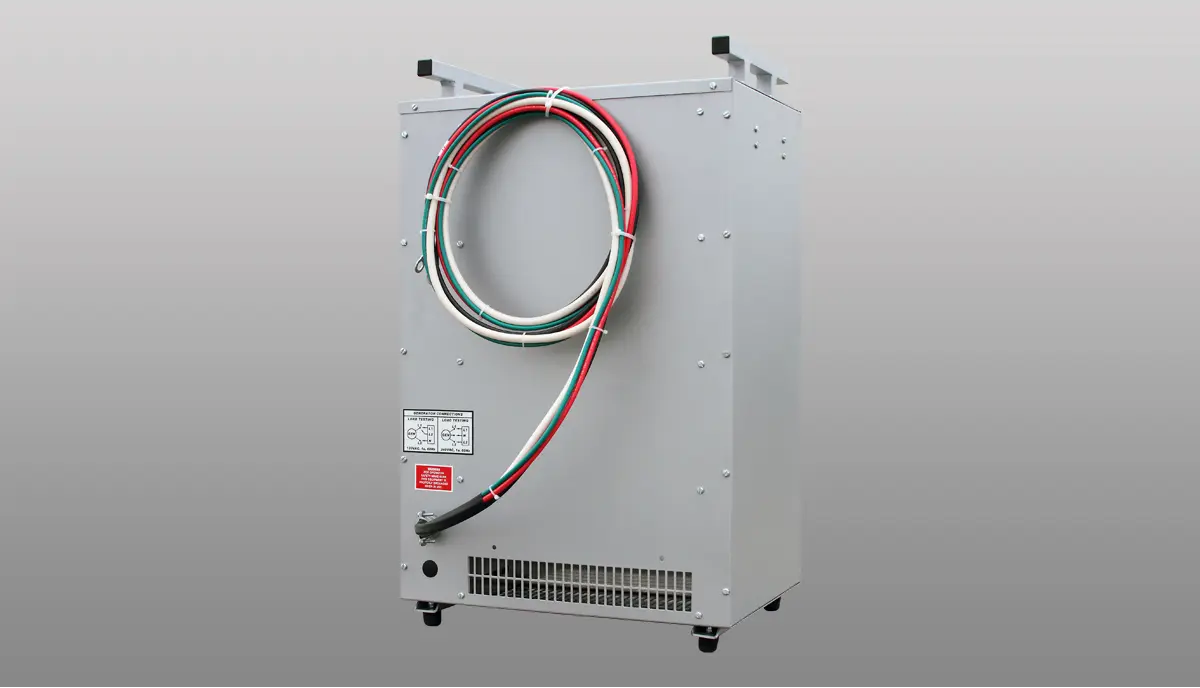

Dimensions	Swift-e and Swift-e+: 20"W x 17.75"H x 14"D Swift-e Ultra: 20"W x 32.5"H x 14"D
Weight	Swift-e and Swift-e+: 40-50 lbs Swift-e Ultra: 120 lbs

Note: These specifications are for standard models. Additional capacities are available upon request. Dimensions and weights are subject to change with options and capacities selected.

Downloads

Options

Connections: NEMA Plugs, CAM-LOK Connectors, Clamps
