Filter Tank

Overview

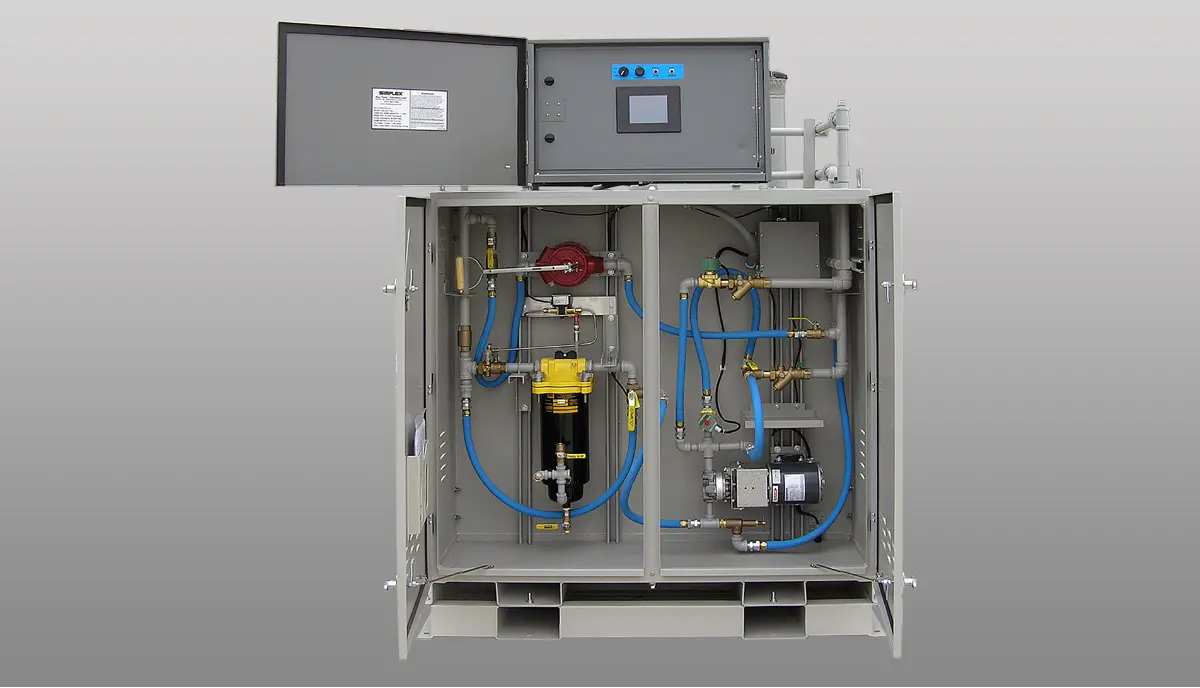

The Simplex Filter Tank is a special variant of the Simplex Reliant Series Fuel Tanks. The Filter Tank incorporates an on-board filter-separator and an on-board pump. The pump can be either an included fill pump or return pump equipped with flow-control solenoid valves or a dedicated 2 gpm filter circulation pump.

Fuel is re-circulated, at a 2-10 gpm flow rate, in the day tank to remove harmful particles and water. Tank sizes are from 50 gallons to 400 gallons. Particulate filtration is 2 micron and water separation is 5 ppm.

Tanks are UL142 double-wall construction, and the controllers are UL508 digital or analog.

We are experts at building products that meet our customer's exact requirements. Contact Simplex if your job specifications require additional options or considerations.

Request a Quote

Features

Variant of Simplex Reliant Series, with inclusion of integral tank filtration system
PLC based programmable digital controller or analog control
UL142 double-wall tank construction
Fuel filter-separator
On-board pump
50-400 gallons
Use as day tanks, return tanks, source tanks
Use with fuel oil

Specifications

Tank Capacities	50, 75, 100, 150, 200, 275, 325, 400 (gallons)
Pumps and Motors	10 GPM pump, 0.75 HP motor 15 GPM pump, 1.0 HP motor 20 GPM pump, 1.5 HP motor 30 GPM pump, 2.0 HP motor 40 GPM pump, 3.0 HP motor 50 GPM pump, 3.0 HP motor
Voltage	115/230-1-60V, 230/460-3-60V 230-1-60V, 230/460-3-60V
Filtration	Strainer, 100 mesh Pre‑filter, 10 micron Final filter, 2 micron Water separator, 5 PPM
Control	UL508 Digital PLC Based controller, network compatible UL508 Analog Level Controller
Tank Construction	Closed secondary containment Suitable for indoor or outdoor installation 12 GA HRS
Tank Listing	UL142 Double‑Wall
Tank Rating	Atmospheric tank tested to 3 PSI
Finish	UL Listed powder‑coat process
Typical Fittings	Engine Supply Drop Tube, 0.75" NPT Male Siphon Drain Drop Tube, 0.75" NPT Male Overflow Port, 2.00" NPT Female Engine Return Port, 1.00" NPT Female Extra Pipe Flange, 1.00" NPT Female Tank Vent Port, 2.00" NPT Female Manual Fill Drop Tube, 2.00" NPT Male Hand Pump Mounting Drop Tube, 0.75" NPT Male Pump Connection to Tank Drop Tube, 0.75" NPT Female Floatswitch MTG/Inspection Port, 1.00" NPT Female Emergency Tank Vent, 4.00" NPT Female Containment Basin Drain, 0.50" NPT Female Pump Outlet/Tank Fill Drop Tube, 1.00" NPT Male Pump Suction Drop Tube, 1.00" NPT Male Containment Basin Leak Sensor Port, 1.00" NPT Female Pressure Relief Flange, 1.00" NPT Female Tank Inlet Drop Tube, 1.00" NPT Male
Dimensions	50 Gallon – 28.25"W x 77.25"H x 49"D 75 Gallon – 58.25"W x 77.25"H x 49"D 100 Gallon – 58.25"W x 77.25"H x 55"D 150 Gallon – 58.25"W x 77.25"H x 55"D 200 Gallon – 58.25"W x 77.25"H x 55"D 275 Gallon – 58.25"W x 77.25"H x 55"D 325 Gallon – 78"W x 77.25"H x 55"D 400 Gallon – 94"W x 77.25"H x 55"D Note: Dimensions are subject to change with options selected.

Downloads

Options

Mechanical	OPT – Description 015 – Auxiliary hand pump, 20 gallons per 100 strokes, 1" NPT (Side mounted) 025 – Locking manual fuel fill cap 060 – Fuel strainer 064 – Emergency vent 065 – Drain hand valve 066 – Siphon drain piping assembly 070 – Check valve/priming tee assembly 080 – Solenoid valve 087 – Manual fuel shut-off valve, bronze 120 – Extra 1" pipe connection 125 – Extra engine suction standpipe 140 – Special paint colors 141 – Epoxy primer, centurian finish
Control Devices and Alarms	OPT – Description 270 – Power available green pilot light 280 – Operation mode selector 285 – Loss of flow alarm 311 – Local/remote low fuel level alarm 312 – Local/remote high fuel level alarm 325 – High fuel level emergency pump stop switch 333 – Critical low fuel alarm 340 – Running pump amber light
Duplex Pump Systems	OPT – Description 345 – Duplex pump controller 390 – Overflow return pump and controller

Note: We are experts at building products that meet our customer's exact requirements. Contact Simplex if your job specifications require additional options or considerations.
